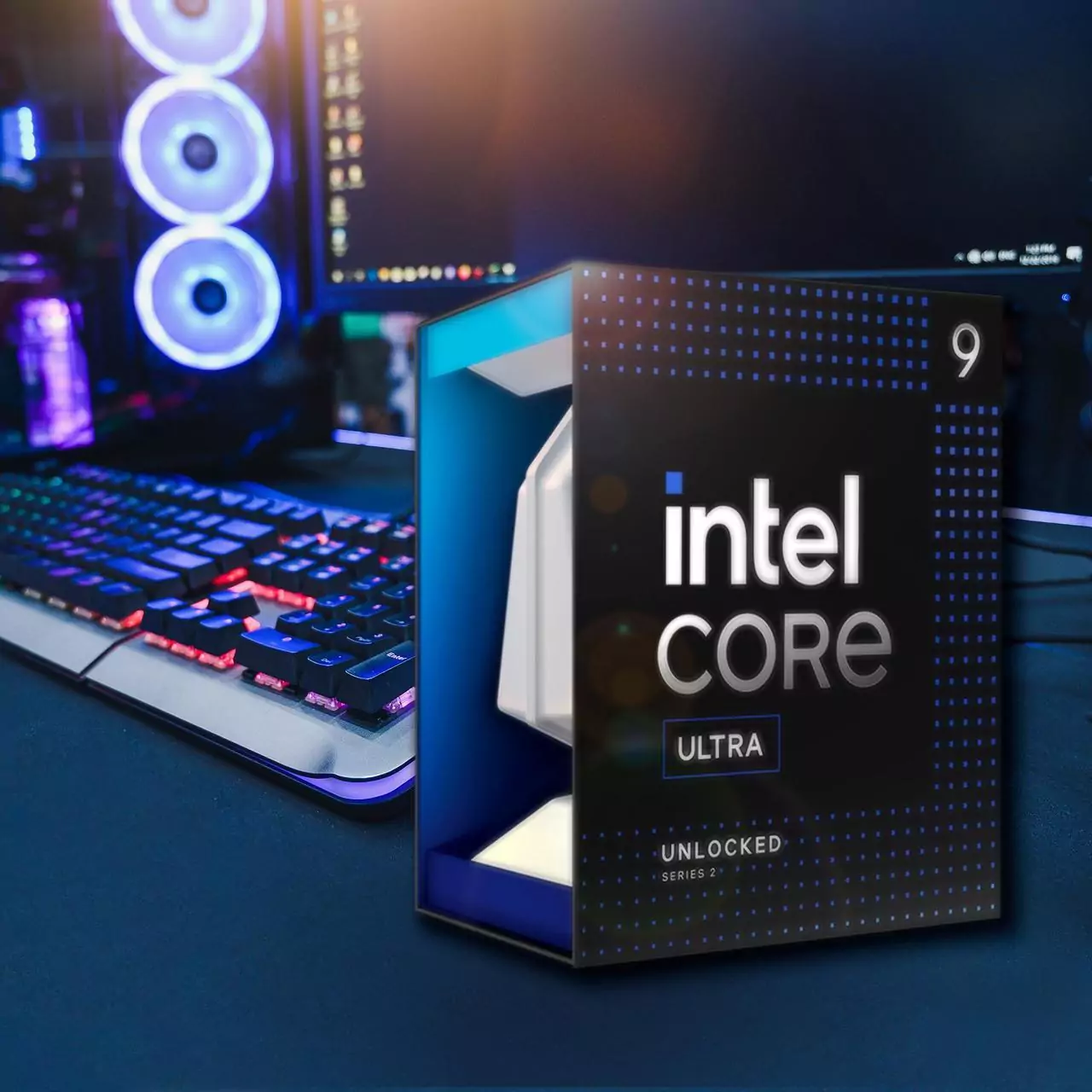

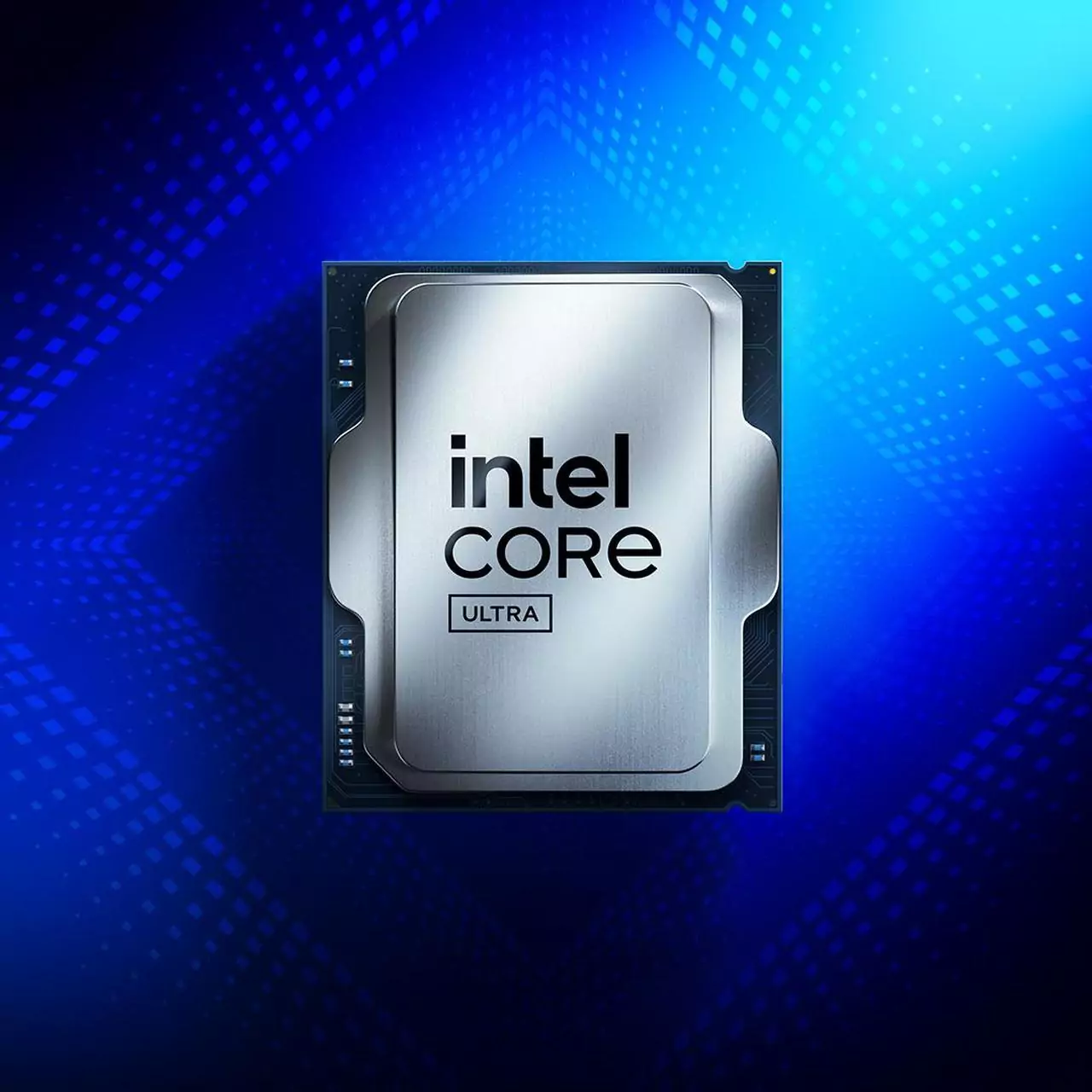

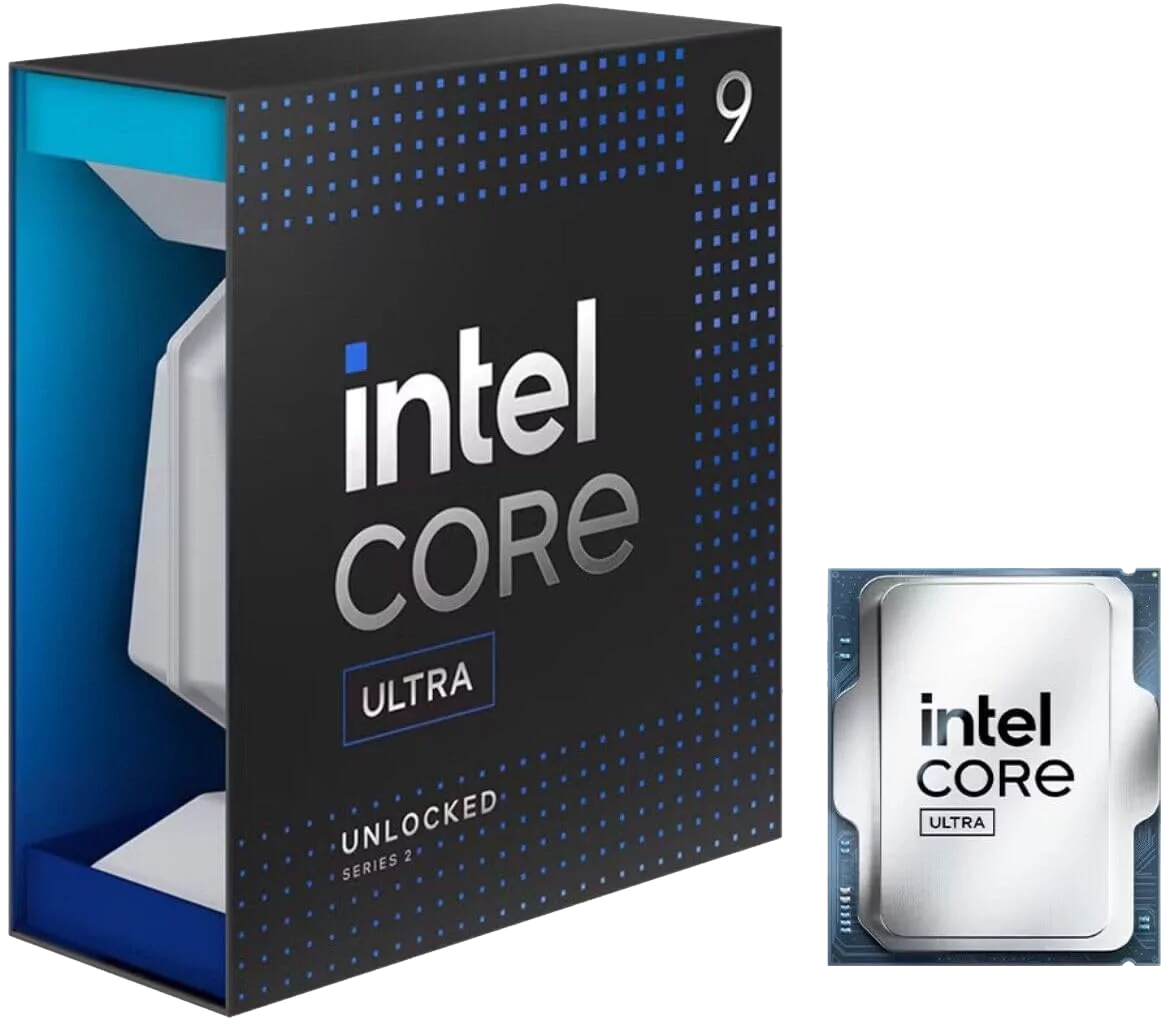

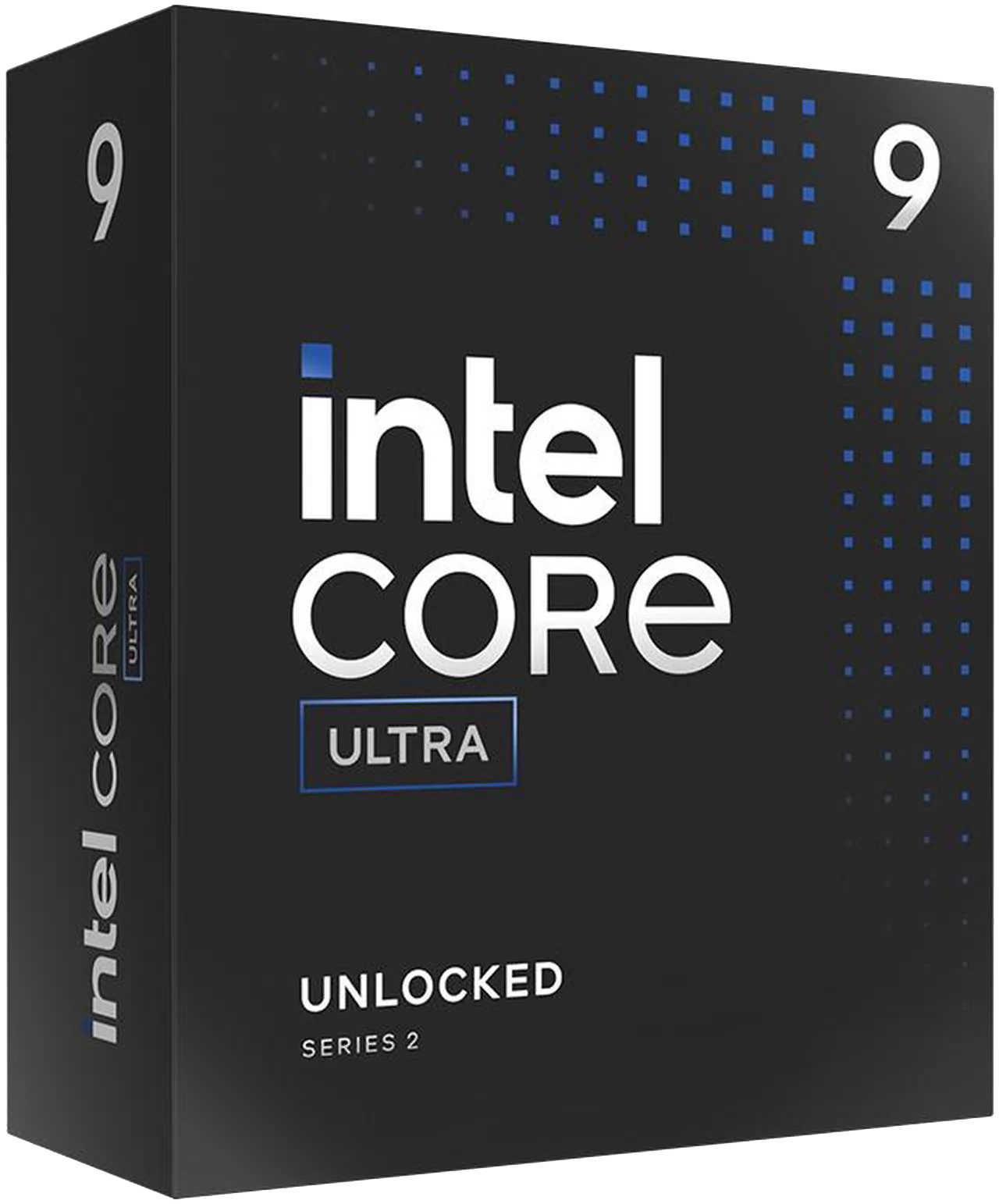

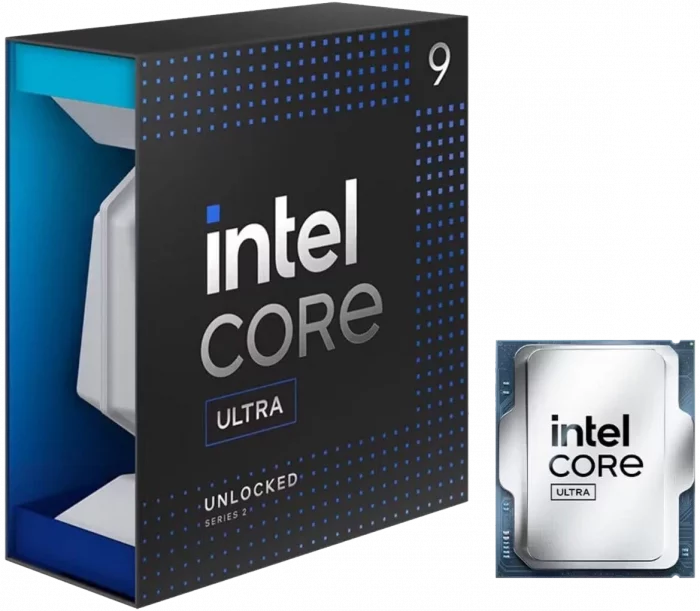

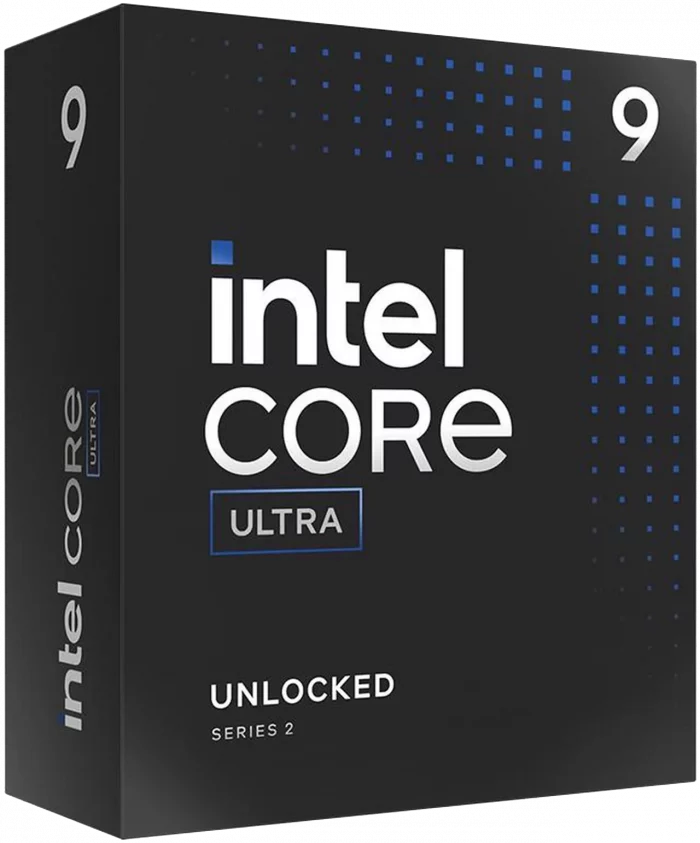

Intel Core Ultra 9 285K – (Series 2) Arrow Lake

Name: Intel Core Ultra 9 285K - (Series 2) Arrow Lake
SKU: 28120
Price: 1119 USD
Availability: InStock

Hér er um að ræða öflugasta örgjörvann frá Intel sem var að koma út.

Intel Core Ultra 9 285K – Þennan er hægt að yfirklocka með Intel Extreme Tuning Utility.
Við mælum ekki með því að þú yfirclockir nema þú vitir hvað þú ert að gera.
Þessi örgjörvi þarfnast Móðurborðs sem er fyrir LGA 1851 og þú finnur þau hjá okkur á síðunni móðurborð.
Intel Core ultra 9 285K er með innbyggðum skjákjarna, en við mælum alltaf með sérstæðu skjákorti ef þú ætlar að fara í krefjandi leykjaspilun.

Original price was: 1.674 $.Current price is: 1.388 $. Með vsk.

Bera saman

Bæta á óskalista

Categories: Örgjörvar, Örgjörvar frá Intel

Lýsing

Intel Core Ultra 9 285K – (Series 2) Arrow Lake 24-Core (8P+16E), LGA 1851, 125W Desktop Processor
Hér er um að ræða öflugasta örgjörvann frá Intel sem var að koma út.

Intel Core Ultra 9 285K – Þennan er hægt að yfirklocka með Intel Extreme Tuning Utility.
Við mælum ekki með því að þú yfirclockir nema þú vitir hvað þú ert að gera.
Þessi örgjörvi þarfnast Móðurborðs sem er fyrir LGA 1851 og þú finnur þau hjá okkur á síðunni móðurborð.
Intel Core ultra 9 285K er með innbyggðum skjákjarna, en við mælum alltaf með sérstæðu skjákorti ef þú ætlar að fara í krefjandi leikjaspilun.

Helstu upplýsingar

Product Collection: Intel® Core™ Ultra Processors (Series 2)

Code Name: Products formerly Arrow Lake

Vertical Segment: Desktop

Processor Number: 285K

Overall Peak TOPS (Int8): 36

CPU Specifications

Total Cores: 24

# of Performance-cores: 8

# of Efficient-cores: 16

Total Threads: 24

Max Turbo Frequency : 5.7 GHz

Intel® Thermal Velocity Boost Frequency : 5.7 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency ^‡ : 5.6 GHz

Performance-core Max Turbo Frequency : 5.5 GHz

Efficient-core Max Turbo Frequency :4.6 GHz

Performance-core Base Frequency : 3.7 GHz

Efficient-core Base Frequency : 3.2 GHz

Cache : 36 MB Intel® Smart Cache

Total L2 Cache: 40 MB

Processor Basepower: 125 W

Maximum Turbo Power: 250 W

Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes

AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography : TSMC N3B

Supplemental Information

Marketing Status : Launched

Launch Date : Q4’24

Embedded Options Available No

Use Conditions : PC/Client/Tablet, Workstation

Datasheet

View now

Memory Specifications

Max Memory Size (dependent on memory type): 192 GB

Memory Types : Up to DDR5 6400 MT/s

Maximum Memory Speed: 6400 MHz

Max # of Memory Channels: 2

ECC Memory Supported ^‡ : Yes

GPU Specifications

GPU Name^‡ :Intel® Graphics

Graphics Base Frequency :300 MHz

Graphics Max Dynamic Frequency :2 GHz

GPU Peak TOPS (Int8) : 8

Graphics Output : DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

X^e-cores: 4

Max Resolution (HDMI)^‡: 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)

Max Resolution (DP)‡ : 8K @ 60Hz

Max Resolution (eDP – Integrated Flat Panel)‡ : 4K @ 60Hz

DirectX* Support : 12

OpenGL* Support : 4.5

OpenCL* Support : 3

Intel® Quick Sync Video: Yes

# of Displays Supported ^{‡ :}4

Device ID : 0x7D67

Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes

NPU Specifications

NPU Name^‡:Intel® AI Boost

NPU Peak TOPS (Int8) : 13

Sparsity Support:Yes

Windows Studio Effects Support: Yes

AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

Direct Media Interface (DMI) Revision: 4

Max # of DMI Lanes: 8

Intel® Thunderbolt™ 4 :Yes

Scalability: 1S Only

PCI Express Revision : 5.0 and 4.0

PCI Express Configurations ^‡ :Up to 1×16+2×4, 2×8+2×4, 1×8+4×4

Max # of PCI Express Lanes : 24

Package Specifications

Sockets Supported : LGA1851

Thermal Solution Spcification: PCG 2020A

Max Operating Temperature : 105 °C

Advanced Technologies

Intel® Volume Management Device (VMD) : Yes

Intel® Gaussian & Neural Accelerator : 3.5

Intel® Thread Director : Yes

Intel® Speed Shift Technology : Yes

Intel® Thermal Velocity Boost : Yes

Intel® Turbo Boost Max Technology 3.0 ^‡:Yes

Intel® Turbo Boost Technology ^‡ : 2.0

Intel® 64 ^‡ :Yes

Instruction Set: 64-bit

Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States : Yes

Enhanced Intel SpeedStep® Technology : Yes

Thermal Monitoring Technologies : Yes

Security & Reliability

Intel vPro® Eligibility ^‡ : Intel vPro® Enterprise, Intel vPro® Platform

Intel® Threat Detection Technology (TDT) : Yes

Intel® Active Management Technology (AMT) ^‡:Yes

Intel® Standard Manageability (ISM) ^‡ : Yes

Intel® Remote Platform Erase (RPE) ^{‡ :}Yes

Intel® One-Click Recovery ^{‡ :}Yes
Intel® Hardware Shield Eligibility ^‡ : Yes

Intel® Control-Flow Enforcement Technology: Yes

Intel® Total Memory Encryption – Multi Key: Yes

Intel® AES New Instructions : Yes

Secure Key : Yes

Intel® Trusted Execution Technology ^‡ : Yes

Execute Disable Bit ^‡ : Yes

Intel® OS Guard: Yes

Intel® Boot Guard: Yes

Mode-based Execute Control (MBEC) : Yes

Intel® Stable IT Platform Program (SIPP): Yes

Intel® Virtualization Technology with Redirect Protection (VT-rp) ^‡:Yes

Intel® Virtualization Technology (VT-x) ^‡ : Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ^‡ :Yes

Intel® VT-x with Extended Page Tables (EPT) ^‡ : Yes
